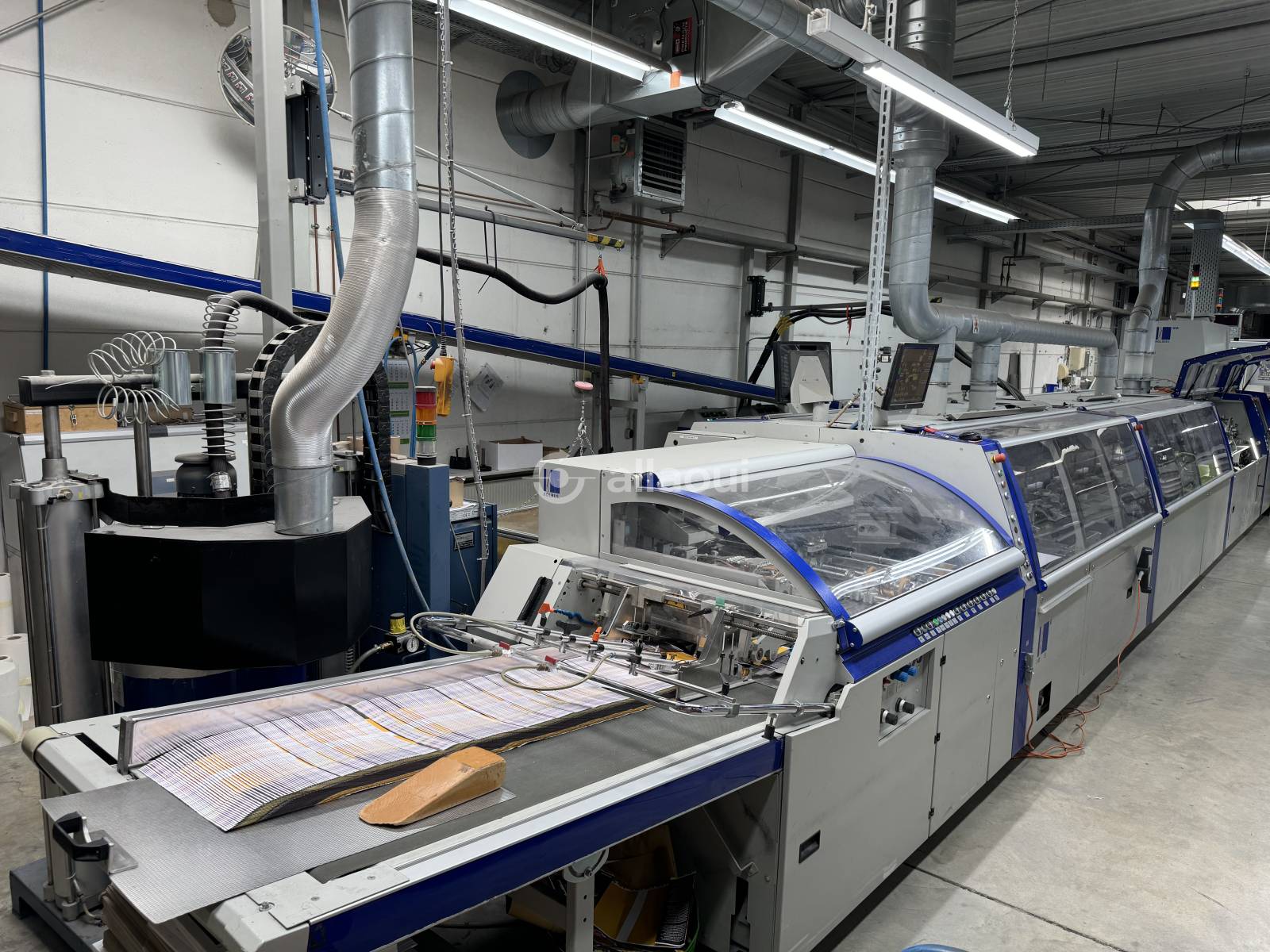

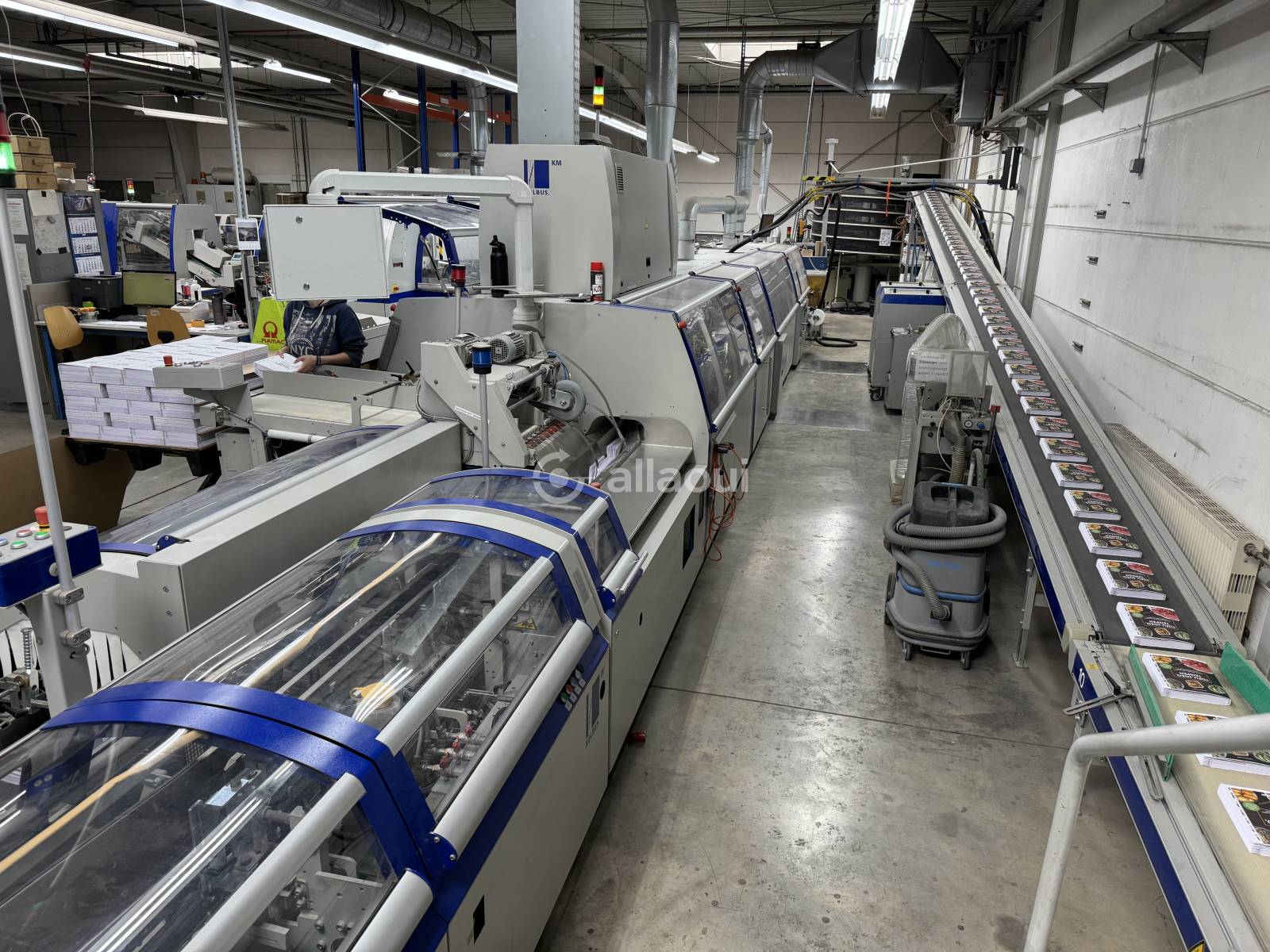

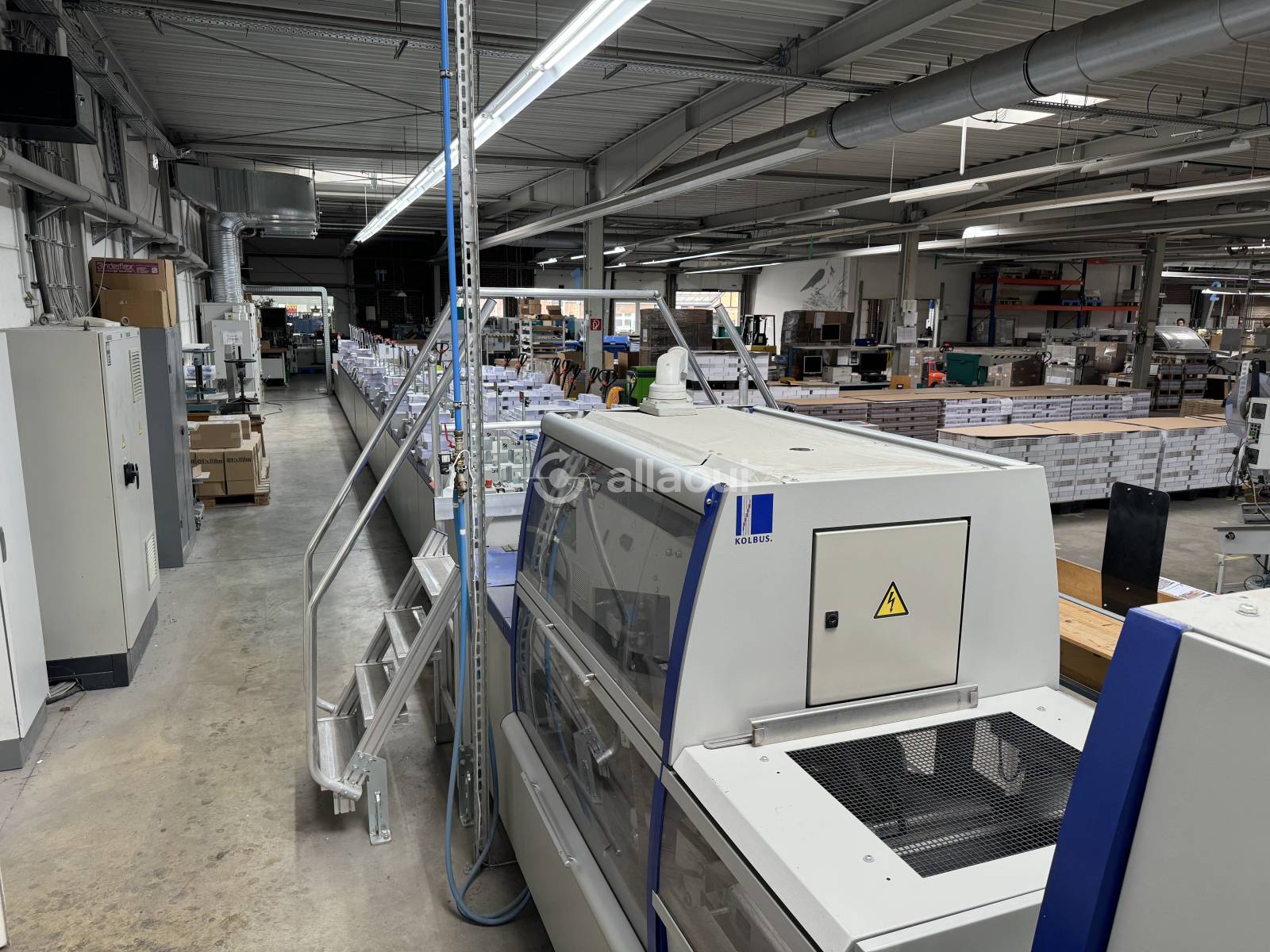

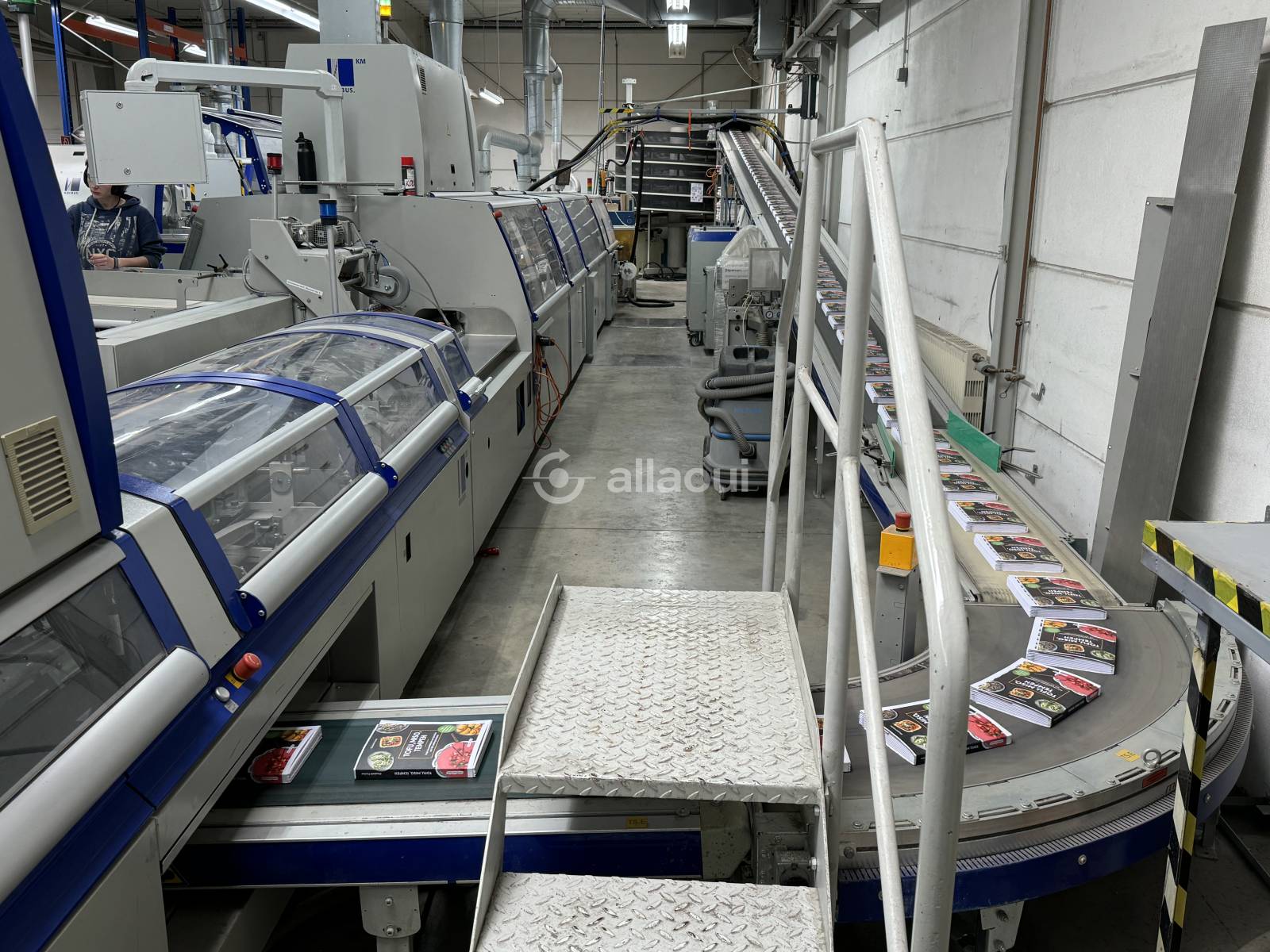

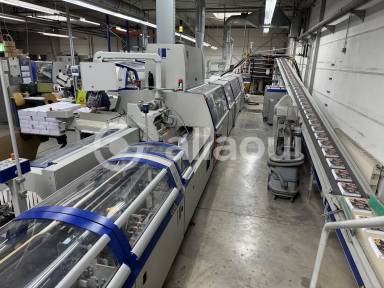

The Kolbus KM 600.C is suitable for the production of bound products like magazines, journals, and catalogs and book blocks at a maximum speed of 9,000 cycles/h.
This perfect binder is fully equipped with stream cover feeder, Hotmelt, PUR, Gauzing, and has produced only 26 Mio. products until now.
Equipment

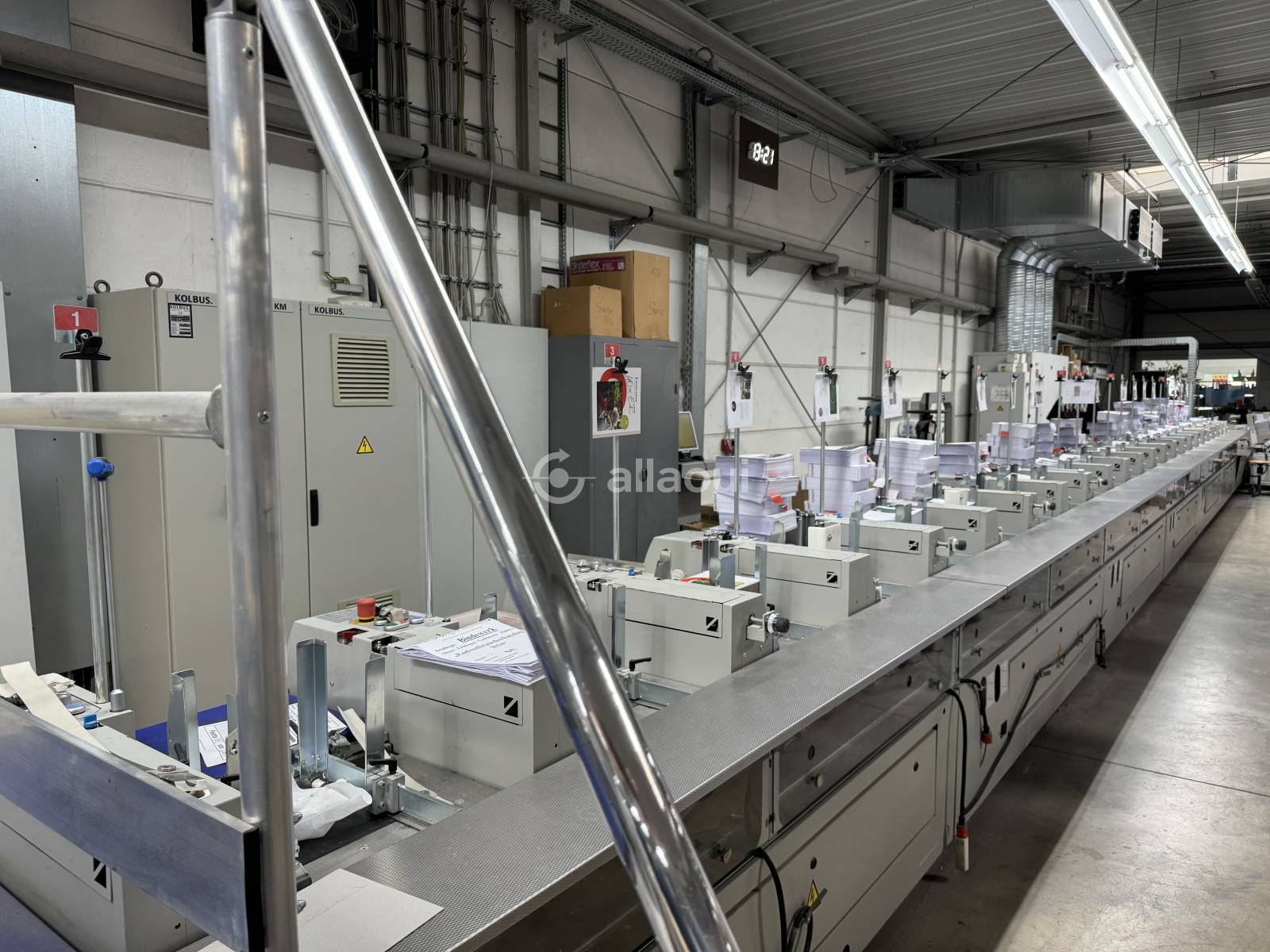

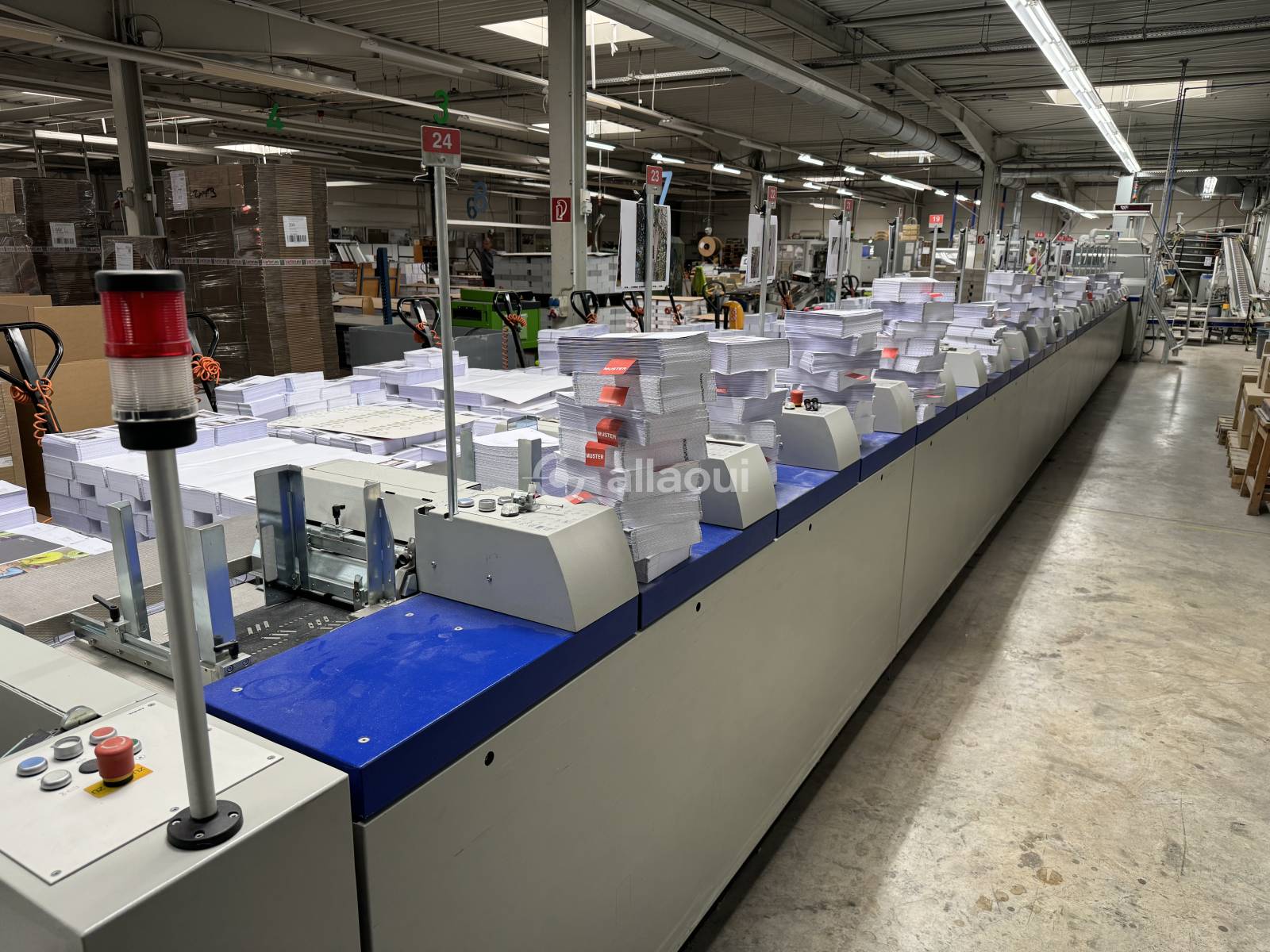

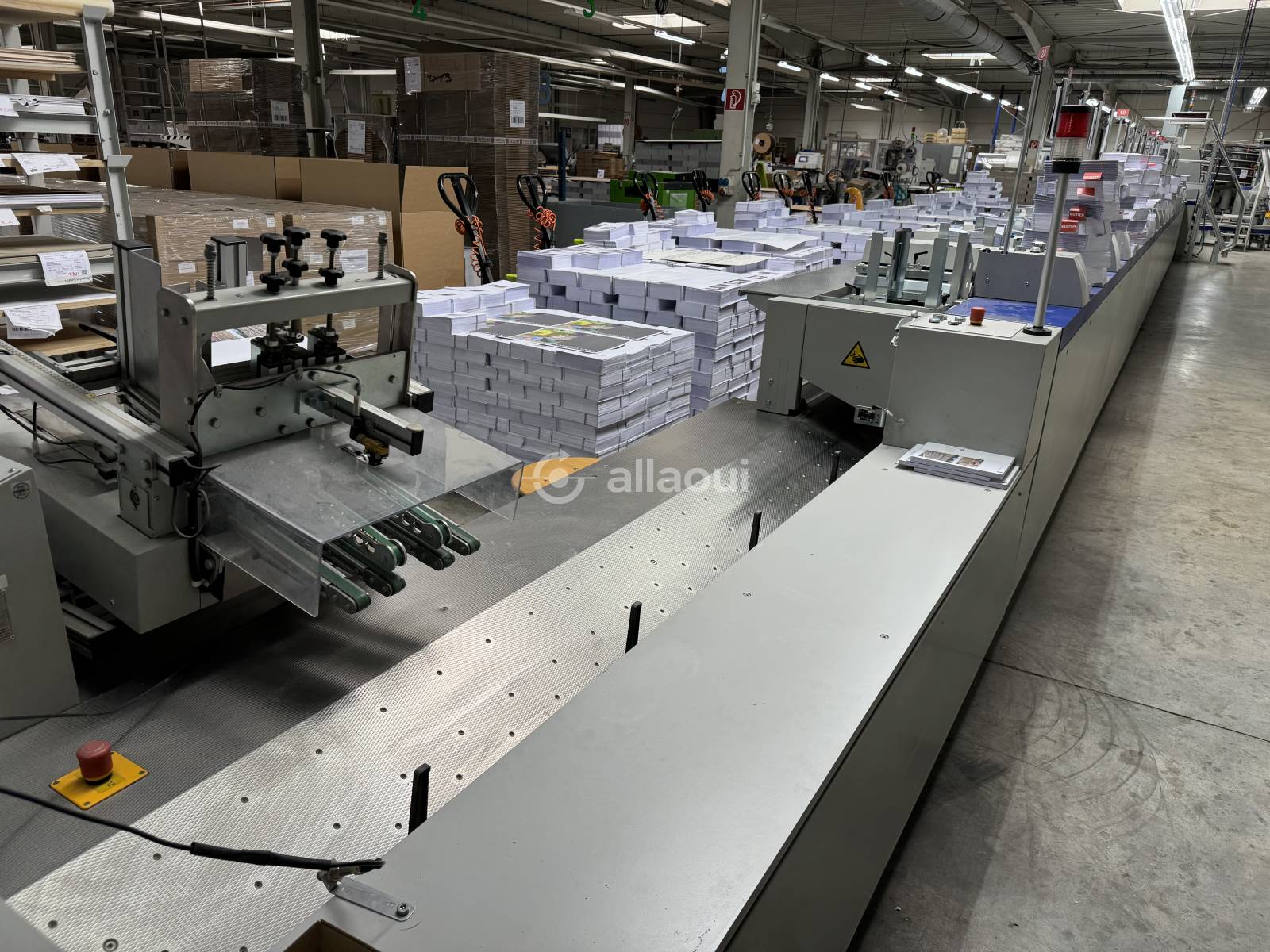

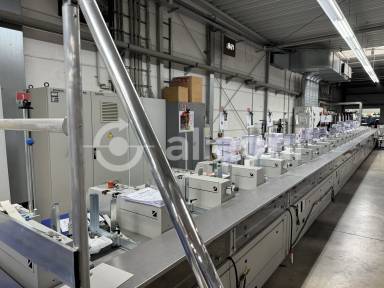

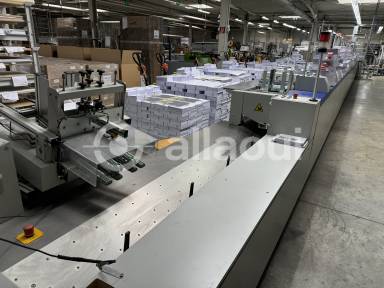

Gathering Machine
Type: Kolbus ZU 822.C
Gathering stations: 24x
Year: 2015
Hand feeding station
Book Block Feeder: Yes
ATC (automatic sheet thickness control)
Reject Unit: AS 842
transfer element: Yes
Aircenter
Technical Details
Size max: 320 x 380 mm
Size min: 105 x 105 mm
layer thickness max: 3 mm
Pile height max: 250 mm
Mechanical speed max: 9,000 cycles/hour

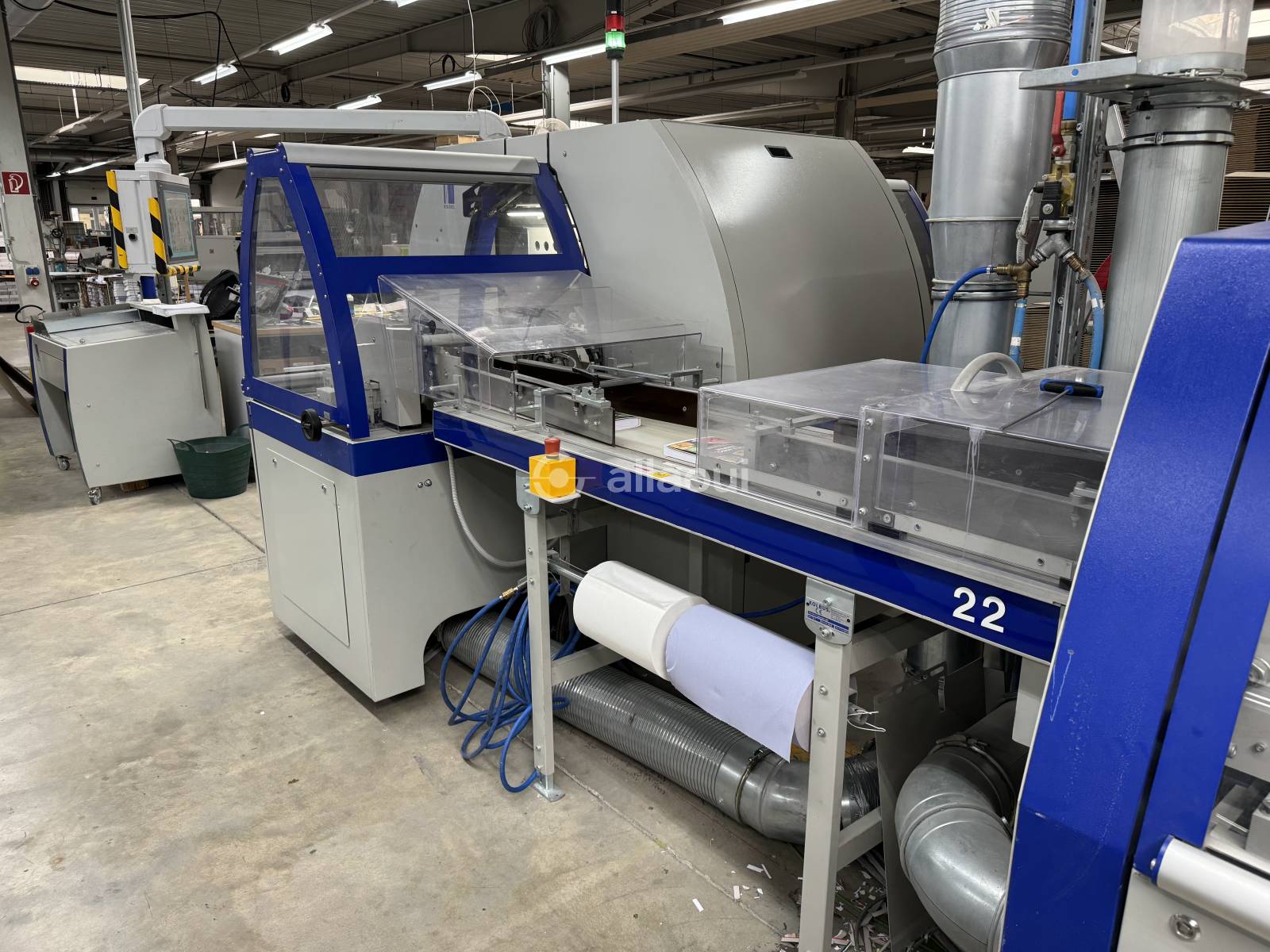

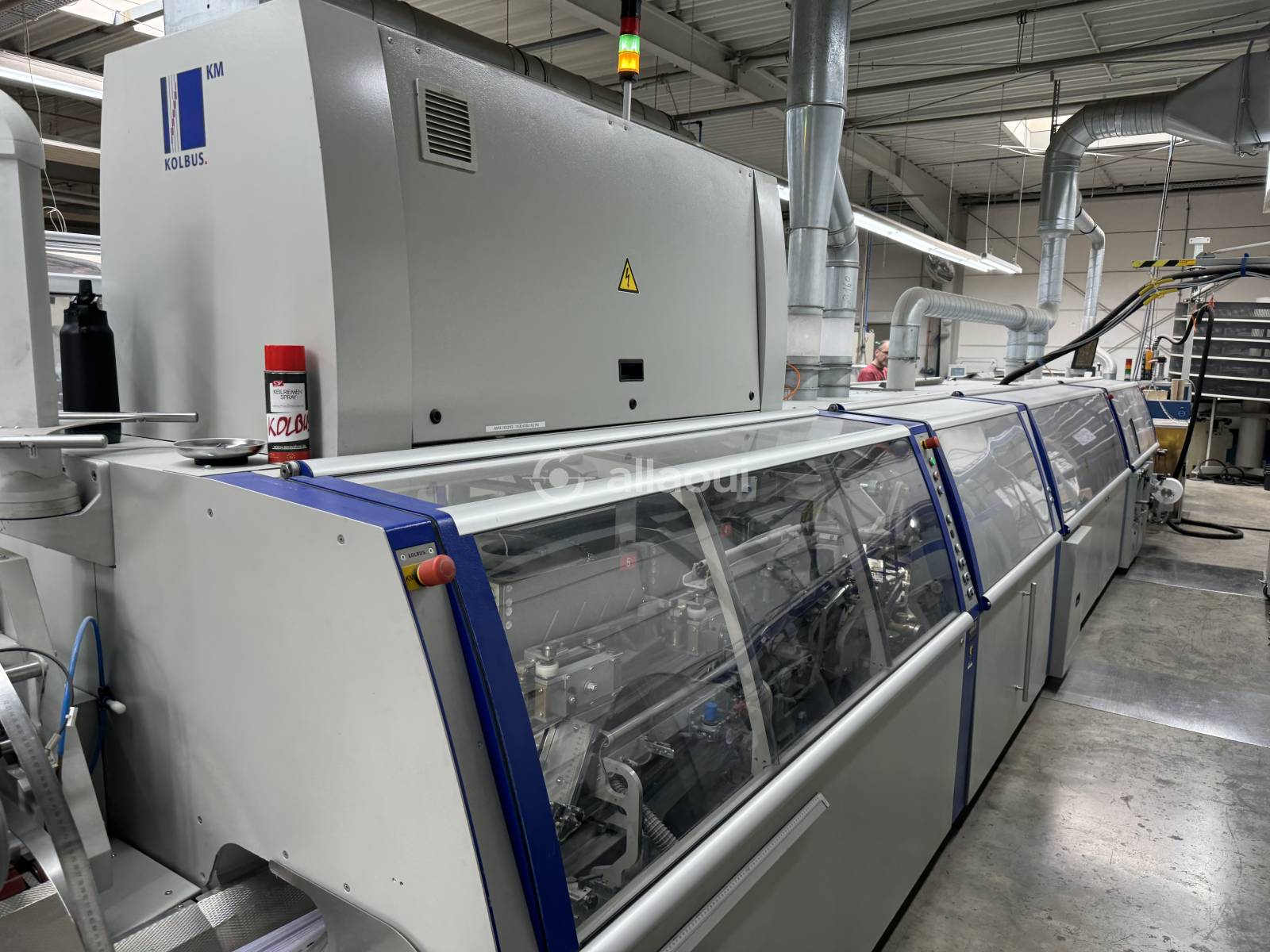

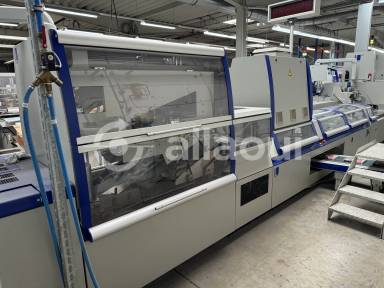

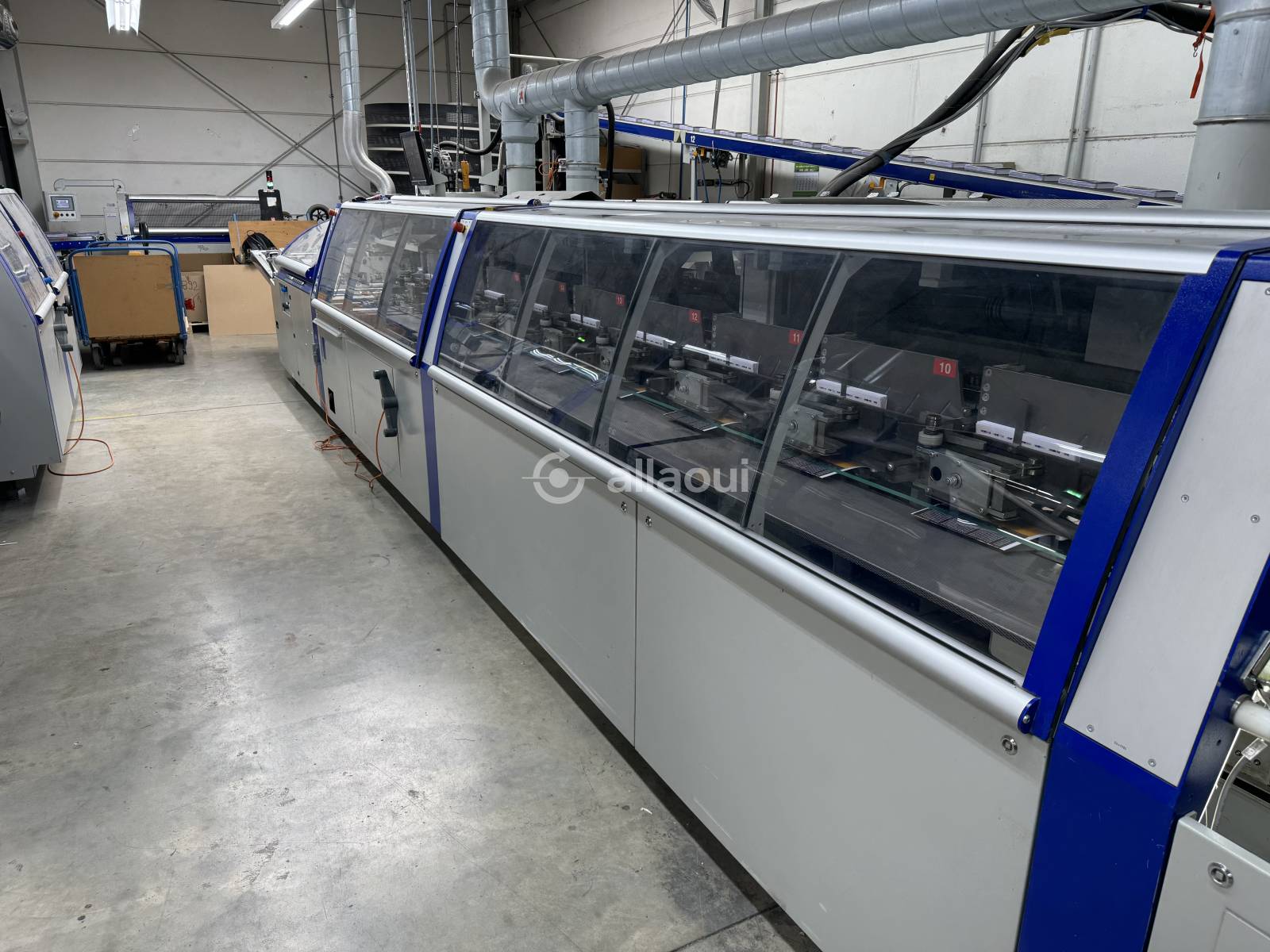

Perfect Binder
Type: Kolbus KM 600.C
Year: 2015

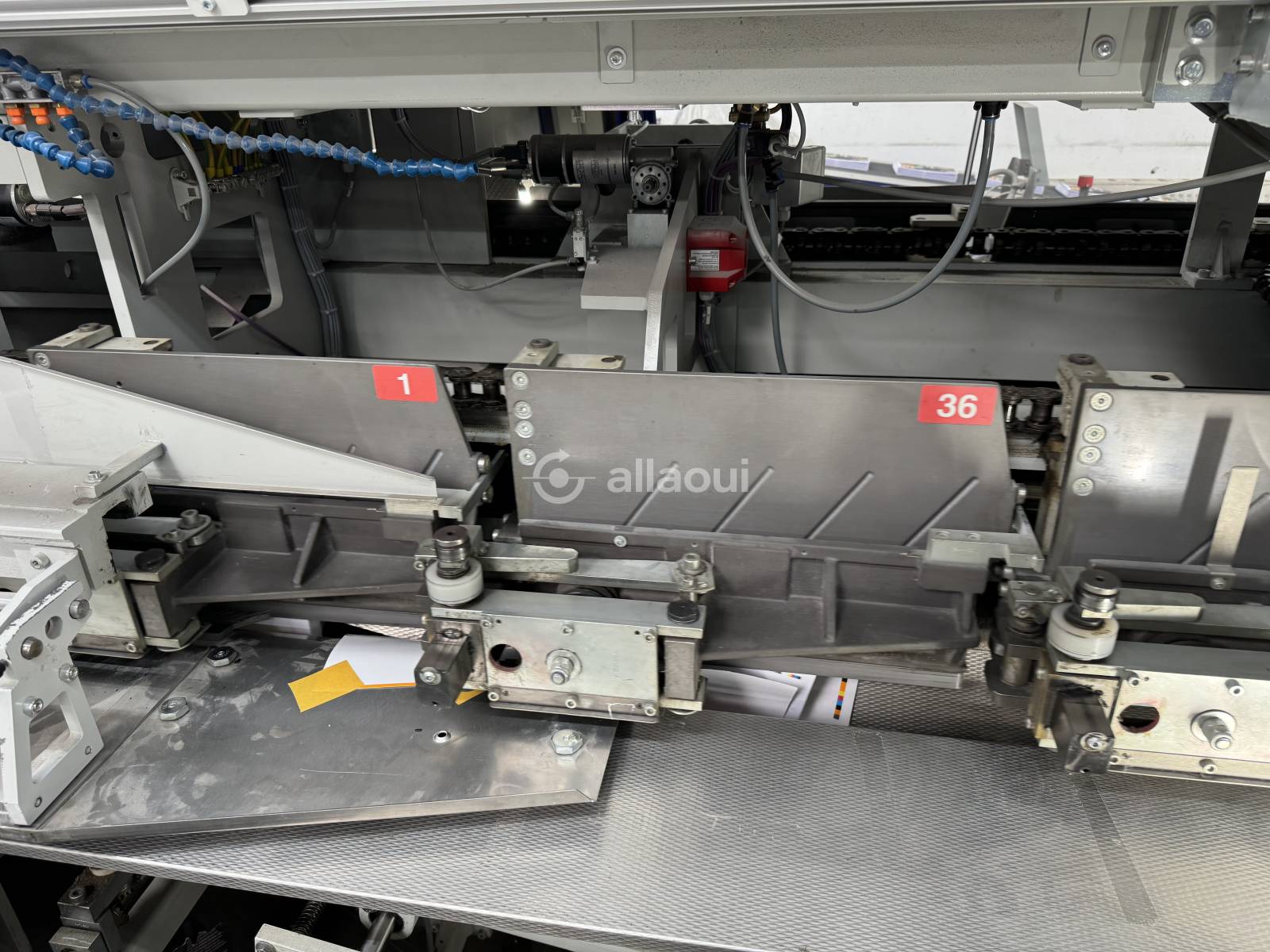

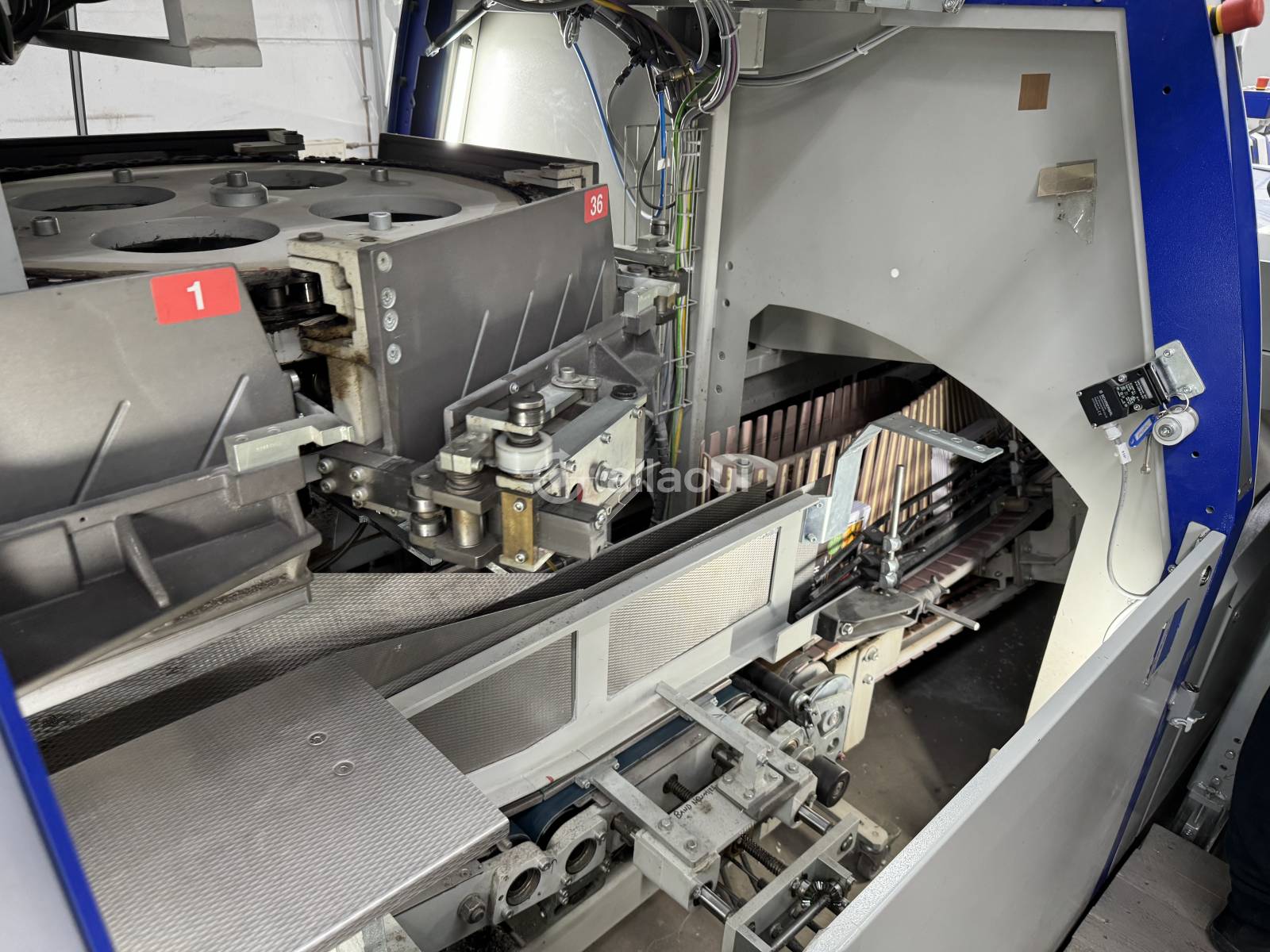

Number of clamps: 36x
Book Block Feeder
Milling station
2. Milling station

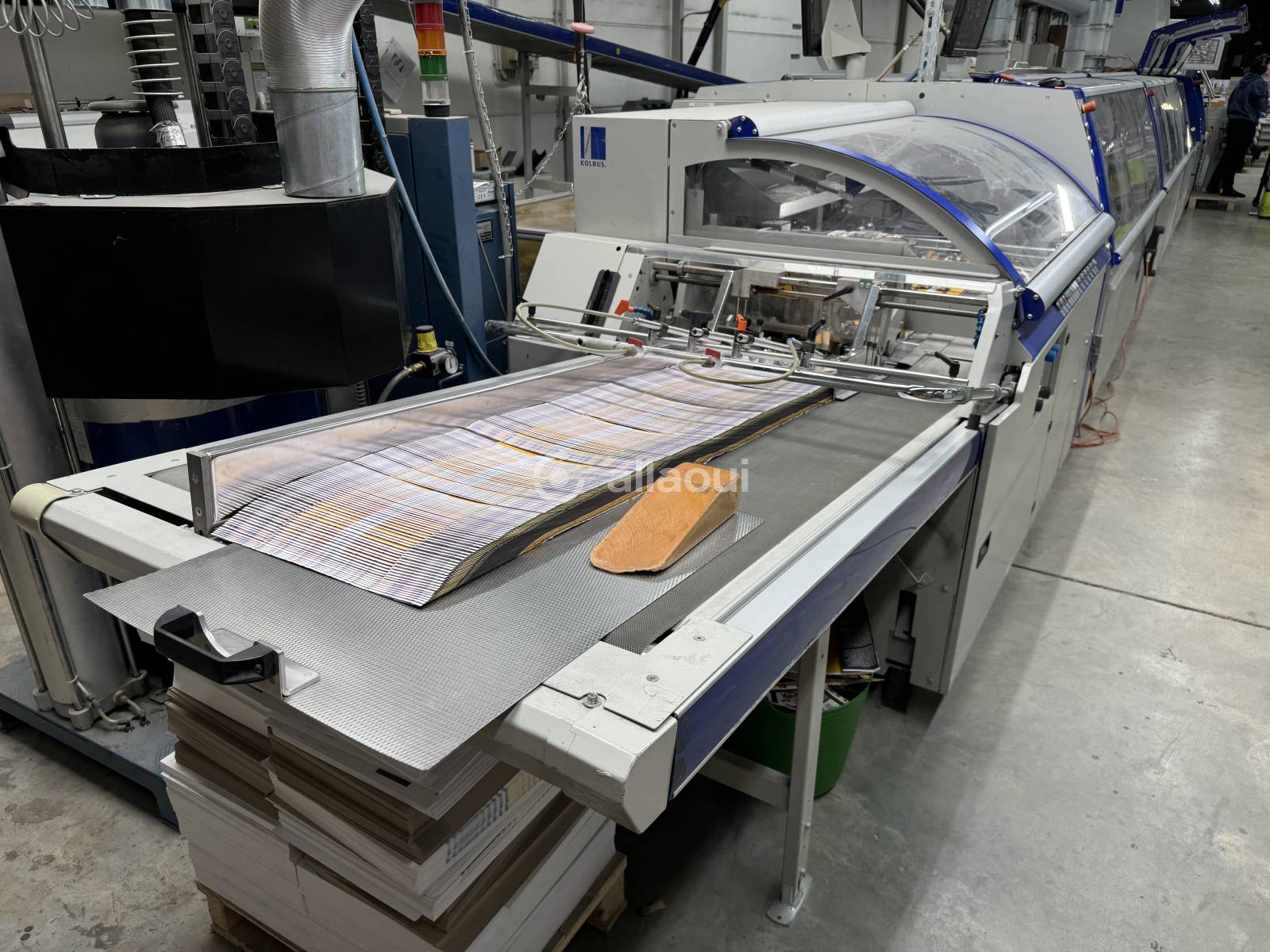

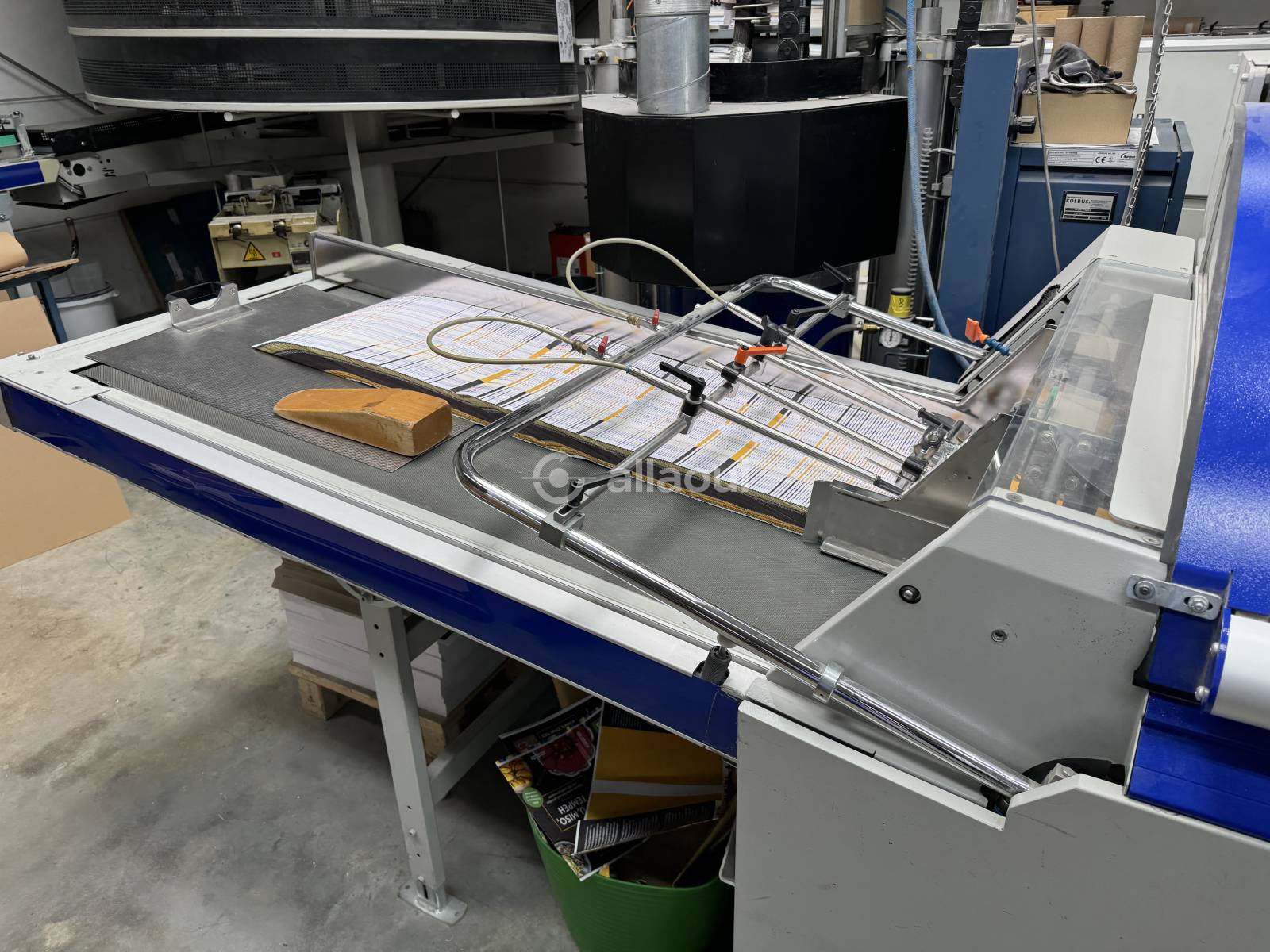

Cover feeder: Stream cover feeder SAL 413.C
Nipping and Pressing station
2nd Nipping and Pressing station
lay down device
Dryer: IR intermediate Dryer
2 back gluing stations with infrared intermediate drying

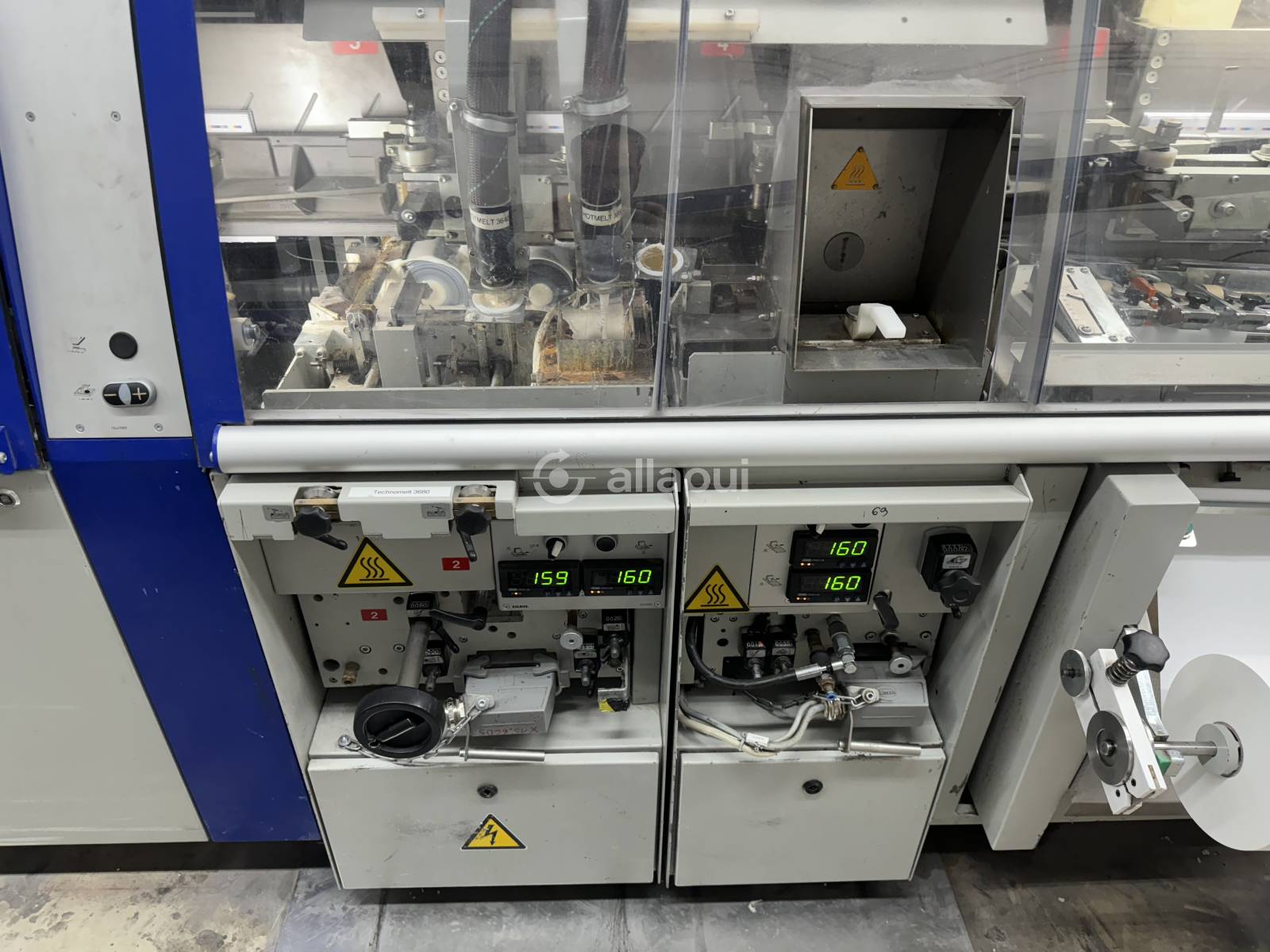

Hotmelt RLW with LH 375.B premelter: 1x
PUR RLW with Nordson premelter and BestForPUR suction unit: 1x
Dispersion RLW (Twinflex) each with glue pump: 2x
Hotmelt SLW: 1x
backlining
Drying Conveyor

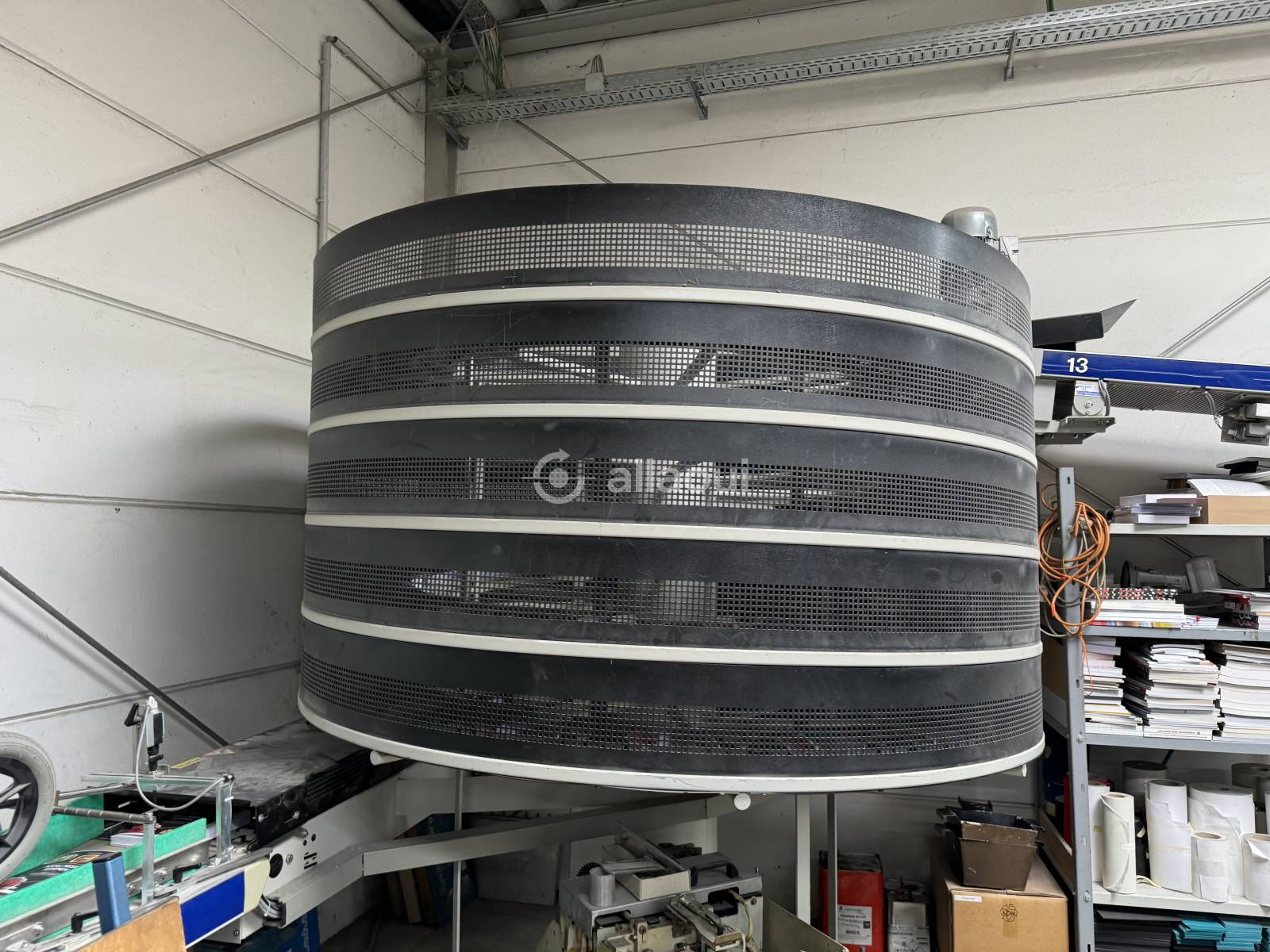

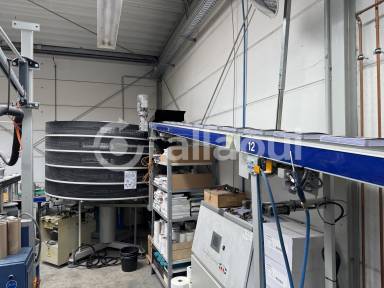

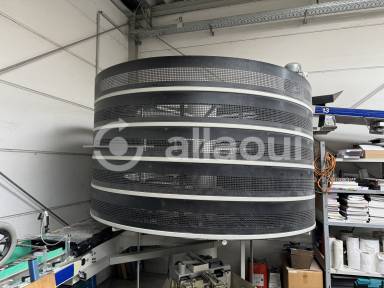

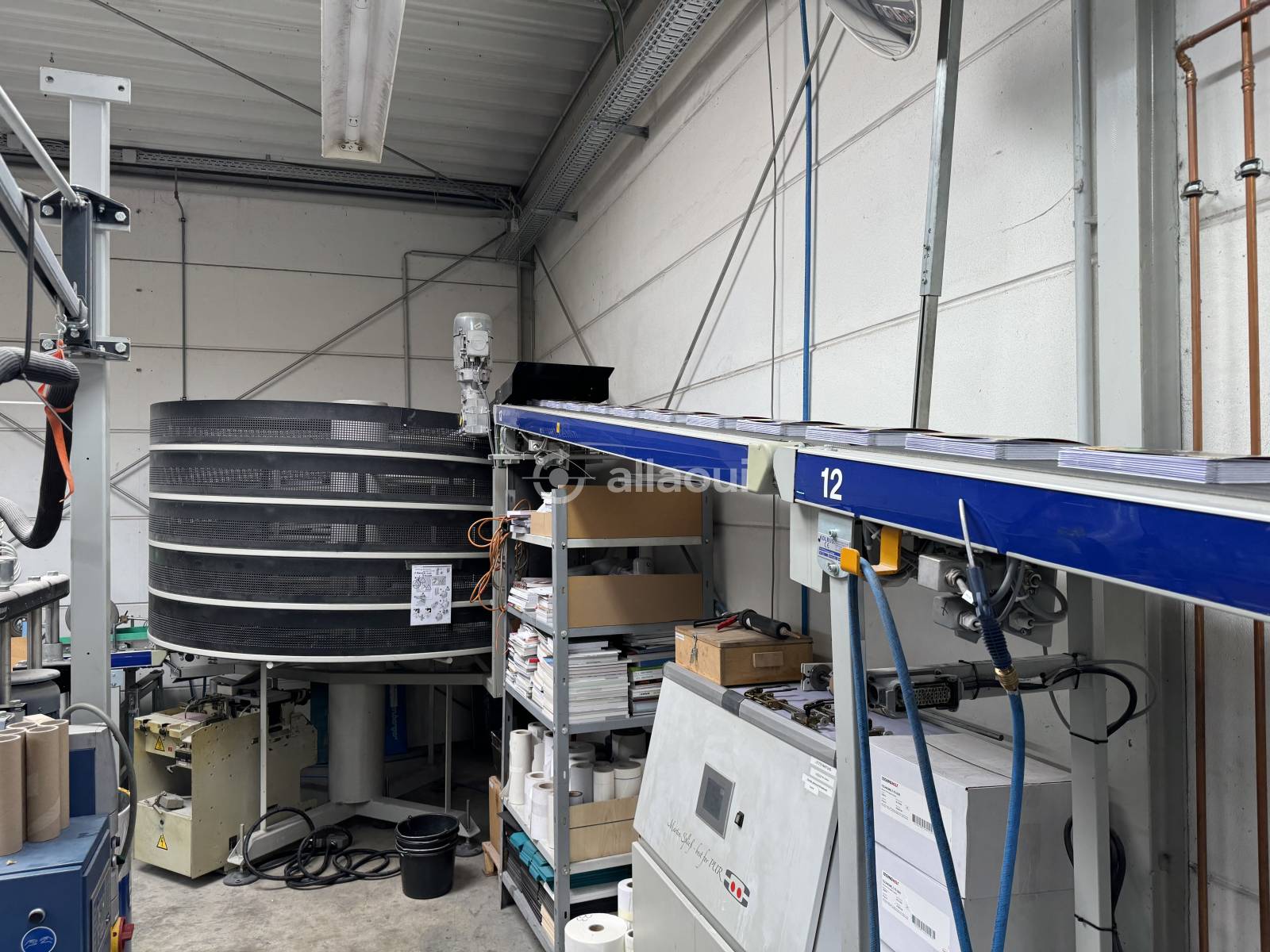

Drying station: with dry tower and emergency delivery

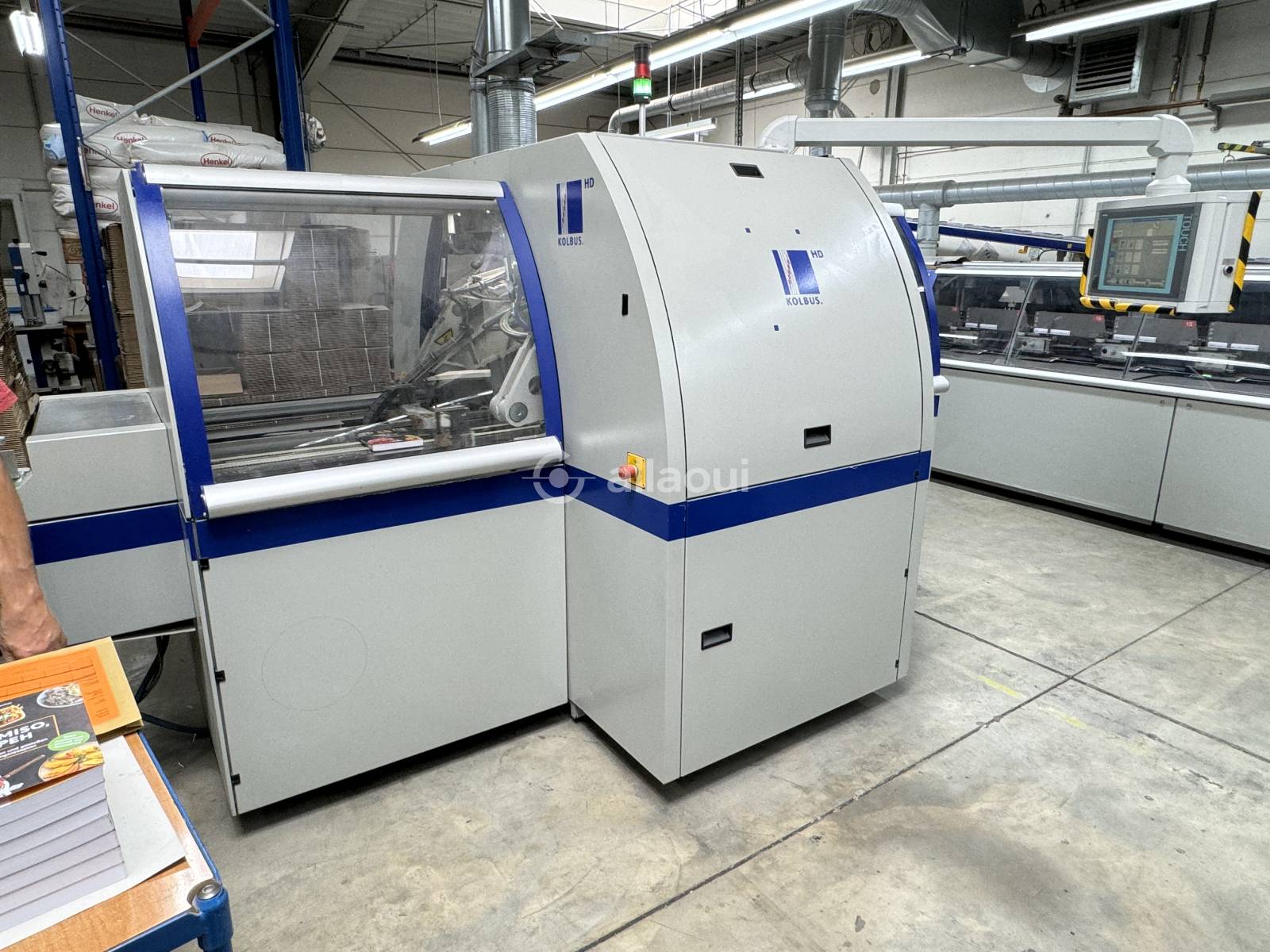

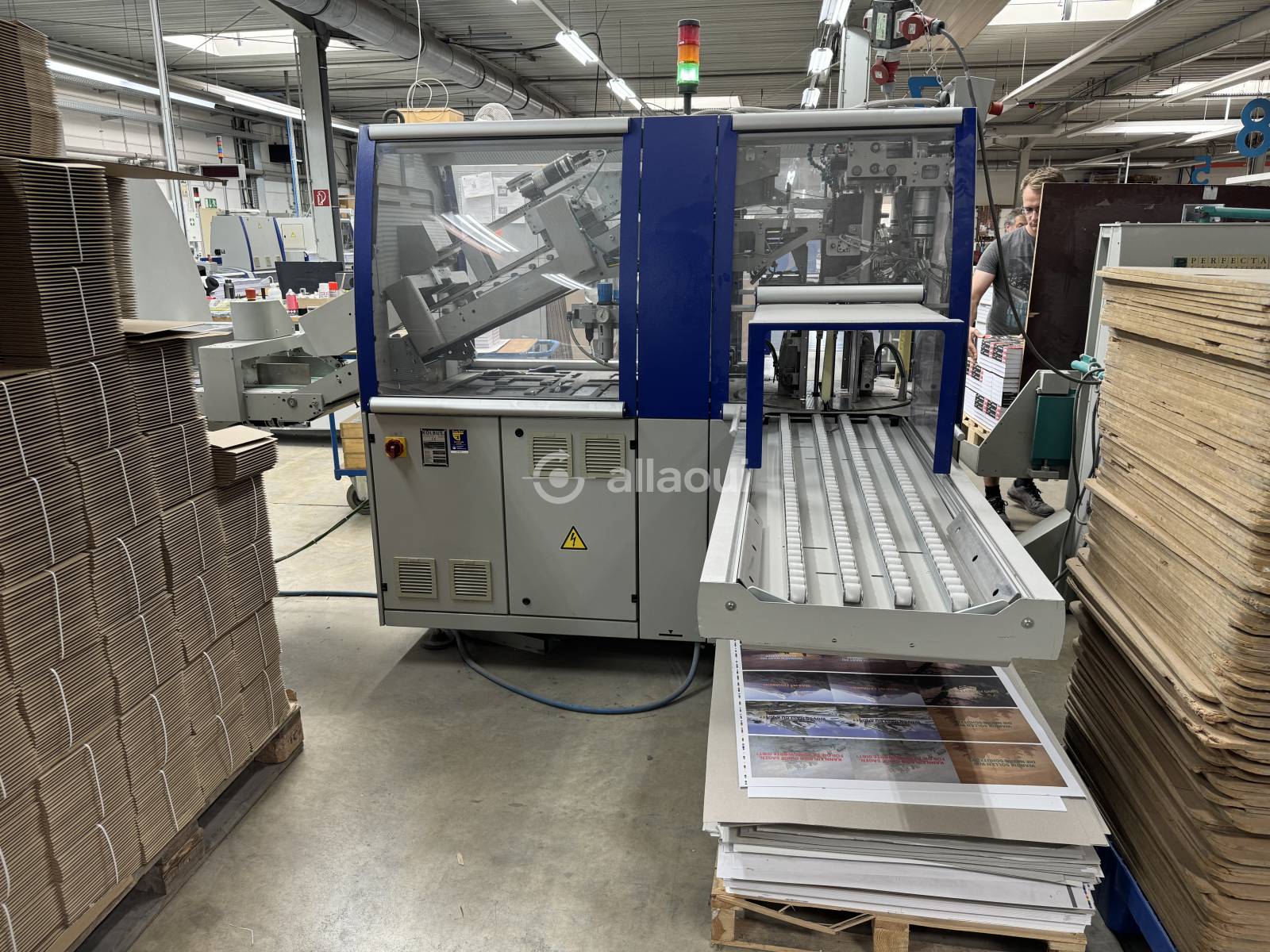

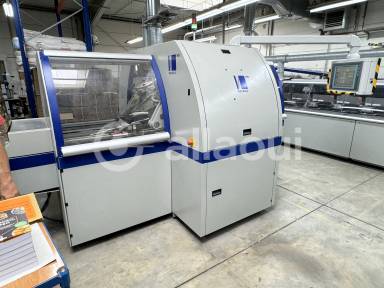

Three knife trimmer
Type: Kolbus HD 143.P
Year: 2015

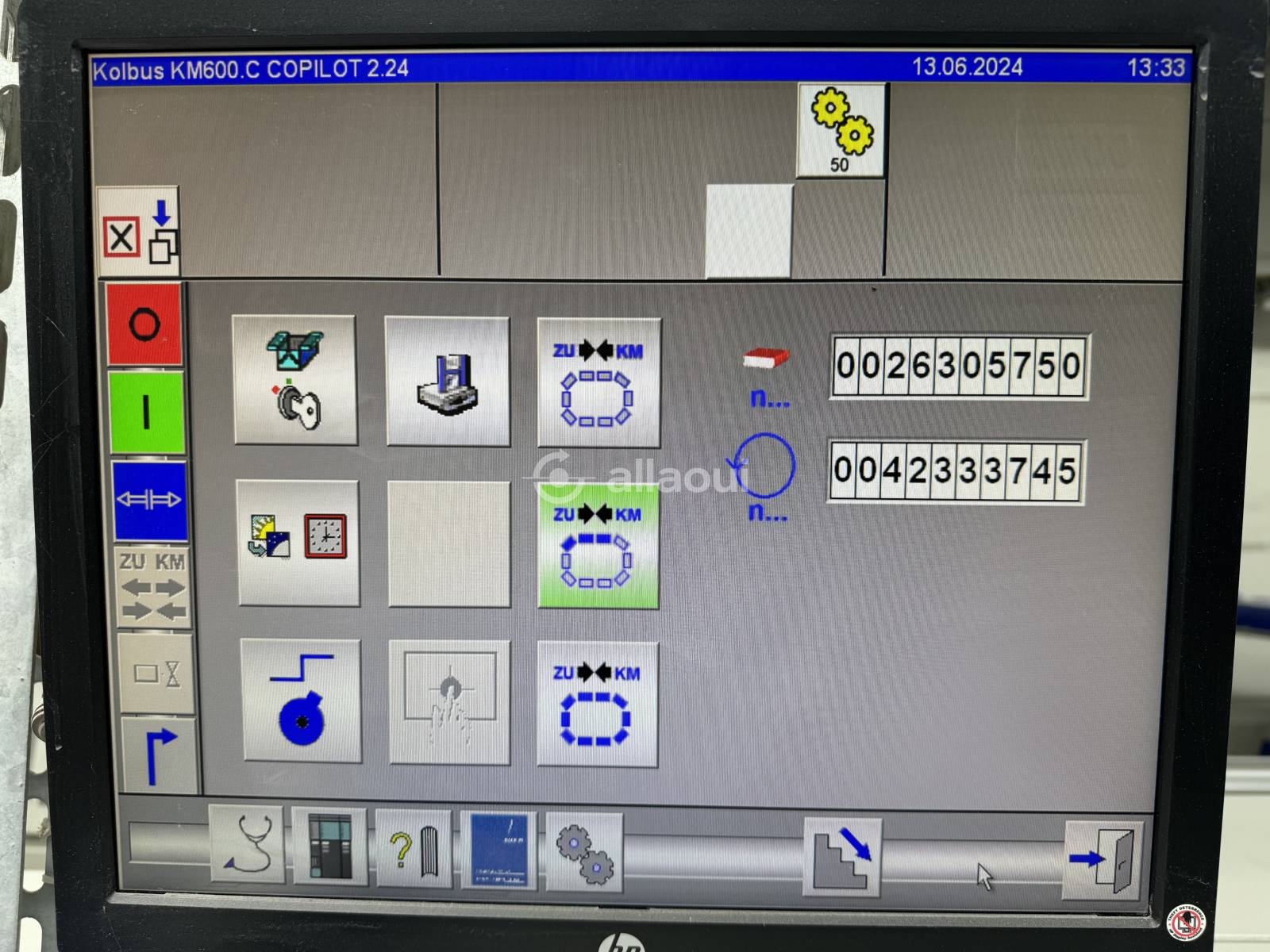

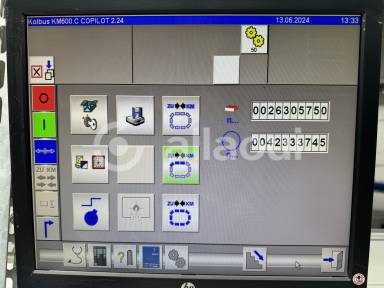

Control panel: Copilotsystem with "Touchscreen"
Format memory
automatic size adjustment
Infeed direction: from the right
Technical Details
Size max (cutted)): 305 x 420 x 80 mm
Size min (cutted): 100 x 100 x 2 mm
Size max (uncutted): 320 x 450 x 80 mm
Mechanical speed max: 4,200 cuts/h

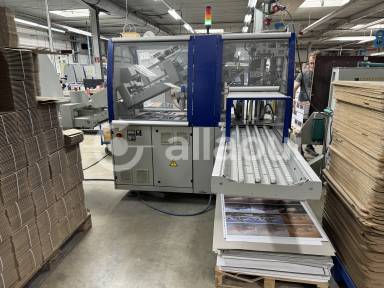

Stacker
Type: Kolbus KL 501
Year: 2015
Output direction: Left and right
Technical Details
Size max: 320 x 320 x 80 mm
Size min: 125 x 125 x 2 mm
Pile height max: 330 mm
Mechanical speed max: 18,000 cycles/h
Technical Details
Mechanical Speed: 9,000 cycles/hour
Book thickness: 60 mm
Max Block format range (width x height x thickness): 320 x 340 x 60 mm / 190 x 420 x 60 mm
Min. Block format range (width x height x thickness): 100 x 105 x 3 mm
